Standard Pneumatic - NORGREN

Pneumatic Actuators



Roundline cylinders
(including cylinders conforming to Standard ISO 6432)

RM/59100/C RM/28000/M RT/57100/M, RT/57300/M
2,5 ...4 mm ISO 6432
10 ...25 mm
8 ...40 mm

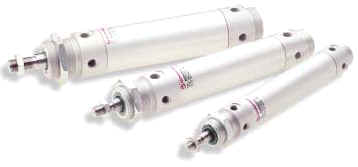

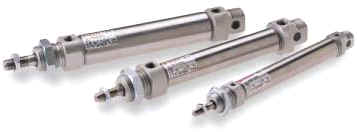

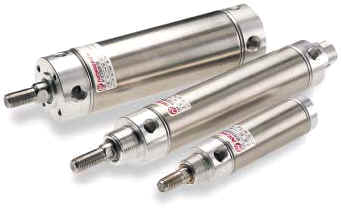

RM/8000/M RT/57200/M RM/55401/M
ISO 6432
10 ...25 mm
8 ...63 mm 32 ...100 mm

Compact cylinders
(including cylinders conforming to Standards ISO 6431 pitch dimensions VDMA 24562 pitch dimensions)

RM/191000/M, RM/193000/M RM/91000/M, RM/93000/M M/50100
ISO 6431,VDMA 24562
20 ...63 mm
12 ...63 mm 8 ...63 mm

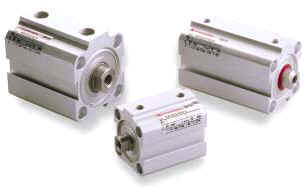

RM/192000/M RM/92000/M M/50200
ISO 6431,VDMA 24562
20 ...125 mm
12 ...100 mm 8 ...63 mm

Profile cylinders - Tie-rod cylinders
(all conforming to Standards ISO 6431 VDMA 24562 NFE 49 003-1)

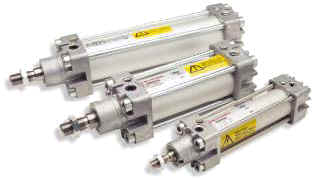

PRA/181000,../M, PRA/183000,../M RA/28000,../M, RA/28300,../M PRA/282000
ISO,VDMA,NFE
32 ...100 mm
ISO,VDMA,NFE
32 ...100 mm
Cylinder with integrated valve
and positon sensor
32 ...100 mm

PRA/182000,../M RA/8000,../M PRA/282000/M/P
ISO,VDMA,NFE
32 ...125 mm
ISO,VDMA,NFE
32 ...320 mm
Airmotor (Oscillator)
50 ...100 mm

RA/8000/P1-P4, RA/8000/P5-P8 PSA/182000/F1 QA/8000
Foxboro/Siemens positioner
63 ...320 mm
Positioner
40 ...125 mm
Guide blocks for RA/8000,PRA/182000
32 ...100 mm

LINTRA
Pneumatic rodless cylinders
A44000 M/44000 M/46000,../M

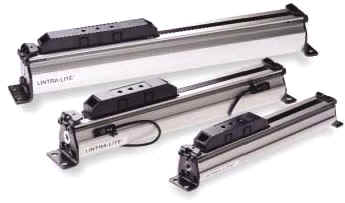

LINTRA-LITE
25 ...40 mm
LINTRA-Compact
25 ...40 mm
Internal guided
16 ...80 mm

M/46000/L M/46100,../M M/46200,../M
Internal guided with brake
25 ...63 mm
External guided
16 ...80 mm
Precision roller guided
25 ...80 mm

M/46800/M,.../HM M/46800/PM M/46900/IA,../M
Heavy duty guided
20 ...40 mm
Heavy duty precision guided
16,25,40,63 mm
TWIN-LINTRA
25 ...40 mm

LINTRA
Electric linear actuators

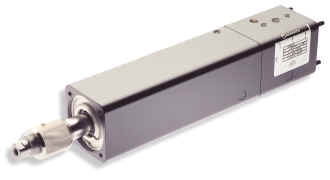

M/49000 M/49100 M/49200
Internal guided
32,40,63 mm
External guided
25 ...63 mm
Precision roller guided
25 ...63 mm

Cylinders with guiding

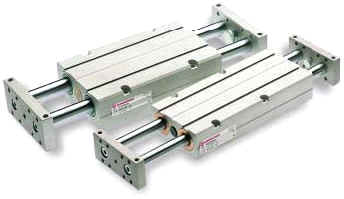

M/60100/M M/61000/M,../MR RM/192000/N6
Slide units
10 ...40 mm
Guiding and stopper cylinders
32 ...100 mm
Compact slides
25,32 mm

Slide tables
M/61200/M,../MR M/261000/... M/261100/...
Slide tables
16 ...32 mm
Compact precision linear slide tables
6 ...16 mm
Precision linear slide tables
10,12 mm

M/261200/... M/261300/... M/261400/...
Low profile linear slide tables
8 ...20 mm
Compact linear slide tables
10,16 mm
Synchronous linear slide tables
6 mm

Rotary actuators
(including actuators conforming to Standards ISO 6431 pitch dimensions VDMA 24562 pitch dimensions)
M/60210/M M/60270/M M/60280 ...,M/60284,../TI
Miniature rotary actuators
0,23 ...1,0 Nm/6 bar
Compact rotary actuators
1,5 ...7,4 Nm/6 bar
Mini vane type
0,2 ...9,3 Nm/6 bar

M/60281/IE ...,M/60284/IE,../TE M/60285 ...,M/60288 M/162000,../M
Mini vane type
0,35 ...9,3 Nm/6 bar
Vane type
5,8 ...242 Nm/6 bar
Rack &pinion type, ISO, VDMA,
7,2 ...306 Nm/6 bar

Grippers

M/160300/M/11 M/160340/M/11 - M/160350/M/11
Angular grippers
8 ...25 mm
Parallel grippers
8 ...25 mm

M/160300/M/12 -  M/160330/M/12 M/160340/M/12 -  M/160350/M/12 -  M/160360/M/12 - M/160380/M/12 -  M/160390/M/12
Angular grippers
8 ...25 mm
Parallel grippers
8 ...50 mm

Stainless steel Clean line
Stainless steel materials: AISI 303, AISI 304, AISI 316 Corrosion resistant cylinders

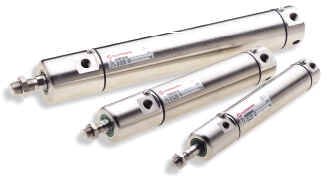

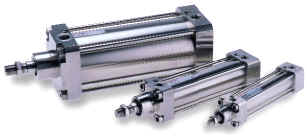

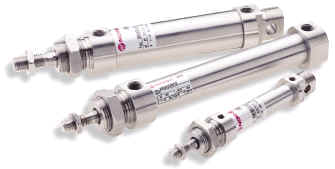

KM/8000/M KM/55001/M KA/8000,../M
Stainless steel, ISO 6432
12 ...25 mm
Stainless steel, ISO 6431
32 ...125 mm
Stainless steel, ISO 6431, VDMA 24562
32 ...200 mm

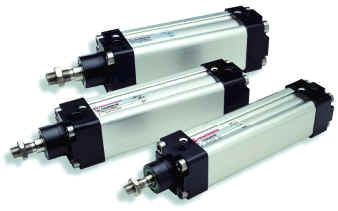

KM/31000 PVA/8000/M VM/46000,.../M, VM/46100,.../M
Stainless steel, air bellows, serviceable
220 ...400 mm
Clean line profile, ISO 6431,VDMA 24562
32 ...100 mm
Corrosion resistant rodless cylinders
Internal and external guided
20 ...80 mm

Norgren - In-house cylinders
Series CP/ RM/900,../M M/1000
CNOMO cylinders
32 ...200 mm
Imperial cylinders
1 ...14"
Heavy duty cylinders
2 ...12"

Special products

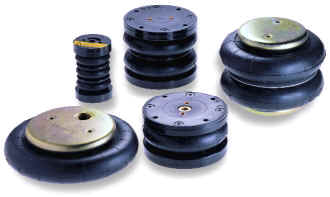

PM/31000 M/31000 VSM/55600/N2
Compact air bellows
80 ...325 mm
Air bellows,serviceable
175 ...700 mm
Hollow piston rod cylinders
25 &40 mm

Additional ranges
LSE, LSE H M/3000 M/59610, M/59612 -  M/59614, M/59620, M/59625 -
C/59838, C/59857 -  M/598333, M/59845, M/59864
Clamping units
1:8, 1:11, 1:17
Impact cylinders
2 ...6"
Shock absorbers
0,9 ...27200 kg

M/55900 M/1428, M/1429, M/163, M/164 M/1525, M/1540
Air/oil converters
0,24 ...5 dm3
Air reservoirs
0,1dm3 ...2,0 dm3
In-line positioner
2 & 4"

Switches
Reed M/50 -  M/369, M/370 QM/32 - TQM/31, TQM/33 M/40

Solid state M/50 - M/418, M/419, M/420, M/421, M/344, M/345, M/346 QM/132 M/41, M/42
