Pneumatic Fittings



Fittings
(tube size mm or inch O/D)
Pneufit C composite Pneufit push-in Pneufit self-sealing Weldfit push-in
3 ... 10 mm
1/8" ... 3/8"
4 ... 14 mm
1/8" ... 1/2"
4 ... 8 mm
1/8" ... 1/4"
6 ... 12 mm
1/4" ... 1/2"

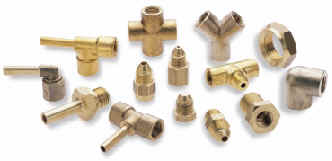

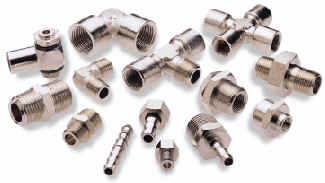

Compression Compression (external nut) Push-on BSP and hose fittings
4 ... 28 mm
1/16" ... 3/4"
4 ... 22 mm 4 ... 15 mm M3, M5
1/8" ... 1 1/2"

Stainless steel push-in
4 ... 12 mm

Tubing and hoses
(tube size mm or inch O/D)
Norgren tubing
Nylon
Spring coils
Nylon PA-11
Nylon Polyurethane
4 ... 28 mm
1/8" ... 3/4"
6 ... 15 mm 3/16" ... 3/8" 4 ... 12 mm

Weldtube
Polyurethane
Spring coils
Polyurethane
Terylene braided PVC Metal braided rubber
6 ... 12 mm 6 ... 12 mm 4 ... 28 mm
3/16" ... 3/4"
4 ... 12 mm
3/16" ... 1/2"

Bundy Cooper Tubing accessories
4 ... 12 mm
5/32" ... 1/2"
4 ... 28 mm
1/8" ... 1 1/8"

Accessories
60 Series ball valves
Brass
61 Series ball valves
Stainless steel
62 Series ball valves
Carbon steel
Traditional 3-piece ball valves
1/8" ... 4" BSP 1/4"...1" BSPP 1/4"...1" BSPP 1/4"...1" BSP

Couplings Blow guns Quietaire heavy duty silencers
4 ... 13 mm
3/16" ... 3/4"
1/8" ... 3/4 5/32" ... 1/2"

Additional ranges
Plasfit push-in tube fittings 82 Series fittings Cartridge push-in fittings (kits) Sintered bronze silencers
T40 series
5 ... 12 mm O/D tube
3/16 ... 1/2 O/D tube
5 ... 28 mm O/D tube 4 ... 12 mm O/D tube

Pressure indicators Pressure drop indicators M/S & T45
Porous plastic silencers
Exhaust filters

Pressure indicators panel mounted Pneumatic counters Rotating joints Air reservoirs
